How To Make a Dwarf Mango Tree

mangoesMango, the country’s national fruit is considered as one of the finest in the world. It is the third most important fruit crop of the country based on export volume and value next to banana and pineapple. It has an established domestic market and has bright opportunities for the international market both in fresh or processed form. The country’s export variety, The “Carabao Mango” is one of the best varieties in the world.

But in order to harvest enough quantities for commercial purposes, you need to have a large land area to plant the trees. And as we are all aware of, mango trees are big and tall so the the harvesting will require labor cost that might not be feasible or might reduce our profit. And in addition to those disadvantages, harvesting is also time consuming and if we will use pesticides bigger trees will cost you more. So what is the solution then? we have to make trees smaller to reduce the overhead expenses. The following is how you create a dwarf mango tree by the technique of LOW BARK GRAFTING AND PRUNING OF MANGO TREE.

Mango like other tropical fruit trees is propagated by several methods:

Propagation by seeds results to enormous variability in the progenies. Therefore, asexual or vegetative methods are adopted to get true to type plants.

The technique of cleft grafting of mango in the Philippines is very common using tall and overgrown rootstock ( 1 meter high). Now, a new method of grafting is being

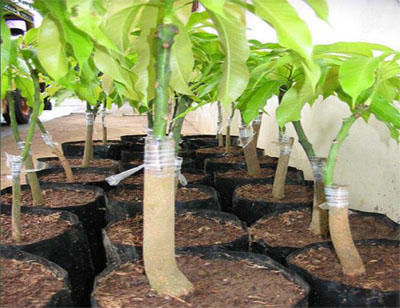

introduce called LOW BARK GRAFTING AND PRUNING MAKES MANGO DWARF…

ADVANTAGES OF DWARF MANGO

1. High number of trees per hectare
–India-3m x 2.5 m(1,333 plants/ha)
–Israel-3m x 5 m, 5 m x 8 m(200-600 plants/ ha)
–Thailand-200-600 plants/ha
–Australia-200-1000 plants/ha
3rd Mango Marketing Congress, August 15-16, 2006, Davao City

2. Easier management of trees:
- Pruning
- Pests and Disease Monitoring
- Minimal losses of fruits
- Minimal damage and bruises
- Easier bagging and harvesting
- Efficiency in spraying

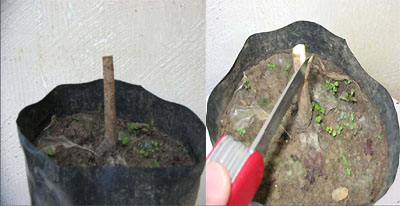

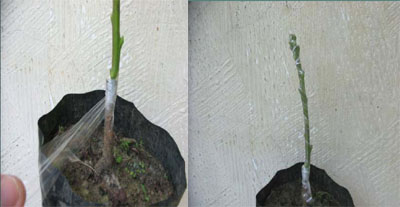

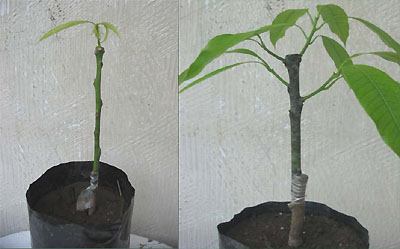

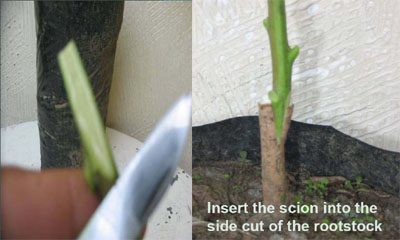

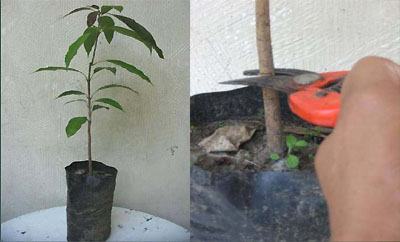

So if you wanted to learn how to graft the mango tree, here are steps in Low Bark Grafting:

mango bark grafting

mango bark grafting

mango bark grafting

mango bark grafting

mango bark grafting

mango bark grafting

mango bark grafting

There you have it. It looks simple enough but I think the waiting is the hardest part. But after the many months of waiting it to grow, it will look like the picture below. Maybe after six years it will bear fruit and ready for mango fruit production.

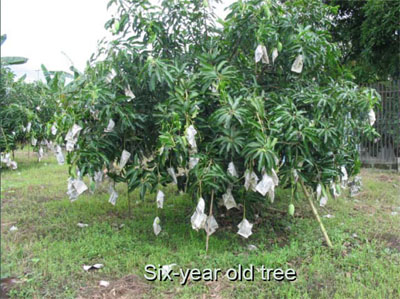

dwarf mango tree

Source: hvcc.da.gov.ph (Dept. of Agriculture, Philippines)
